QL-IPPBX Series

Overview

QianLue IPPBX is the ideal  solution to integrate data,voice and video in one product for small and medium-sized  enterprises, which can be used in scenarios such as govern ment and enterprise call systems, commercial call centers, a nd dispatch center industries.

QL-IPPBX series products are divided into three models:QL-IPPBX 1600, QL-IPPBX 2120 andQL-IPPBX 4131. QL-IPPBX 1600 supports 1 main control board slot and 4 service board slots to meet the service needs of less than 100 users; QL-IPPBX 2120 supports 2 main control board slots and 9 service board slots to meet the service needs of 100~1000 users; QL-IPPBX 4131 supports 2 main control board slots, 9 service board slots and 2 power supply slots to meet the service needs of 1000~10000 users.

The concept of QL-IPPBXis that users can choose different func-tional and performance module boards and control boards ac-cording to their needs, and these modules are connected to the backplane via high-speed Ethernet through special com-munication connectors. QL-IPPBXproducts adopt SIP softswitch core, high integration, broadband and narrowband integrated design, which can effectively improve communication efficien-cy and reduce operating costs. The products are connected to PSTN (Public Switched Telephone Network) or private network voice switching equipment via digital or analog trunks, and broadband SIP trunks.

Features

Reliability

Passive Backplane

Hot swapping (modular boards)

Avoid single point of failure

Star topology bus

Smart Modules

Compact PCI high-speed connector

Availability

Wide sofware selecton: Asterisk, Elastx, FreePBX, 3CX,etc.

Modules are easy to be installed, confgured and disas-sembled

High reliability solutons (RAID/dual master hot standby/redundant power supplies)

Flexibility

The QL-IPPBX 1600/ 2120/4131 chassis provides up to 6/12/14 expansion slots, supporting any combination of the following modular boards, providing a comprehensive range of main-stream communication interfaces.

GSM/LTE Modules

Analog Modules

Digital Modules

RAID Modules / Storage Expand Modules

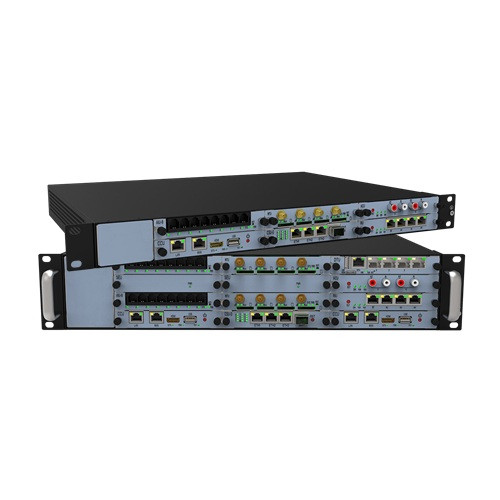

Family Products

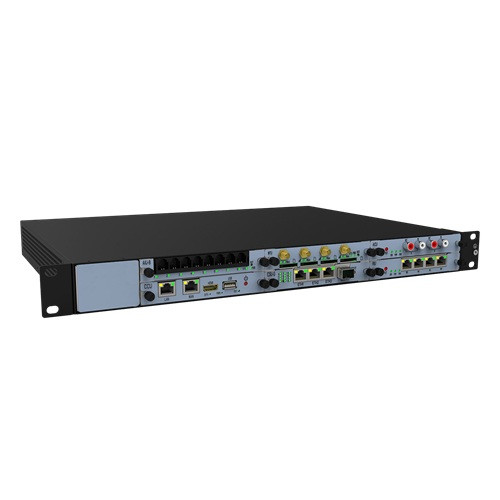

QL-IPPBX 1600

QL-IPPBX  1600  adopts  1U  standard  chassis, 434mm  wide, 330mm deep and 44mm high, which can be installed in a 19- inch cabi-net conforming to IEC (International Electrotechnical Commis-sion) standard.The QL-IPPBX 1600 provides 1 main control board slot and 4 ser-vice board slots to meet the service needs of users below 100.

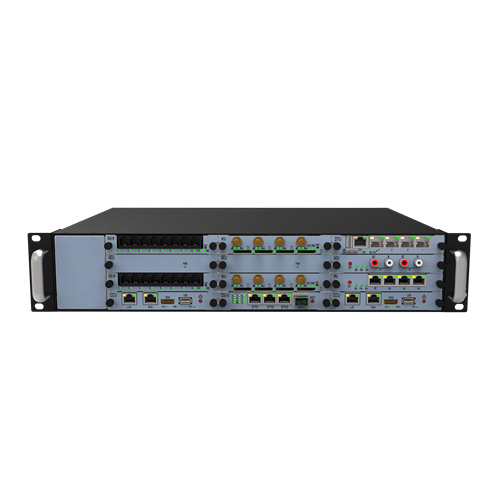

QL-IPPBX 2120

QL-IPPBX 2120 adopts 2U standard chassis, 434mm wide, 330mm deep and 88mm high, which can be installed in 19-inch cabinets   conforming   to    IEC    (International   Electrotechnical Commission) standards.QL-IPPBX 2120 provides 2 main control board slots and 9 service   board   slots   to   meet   the   service   requirements   of 100~1000 us-ers.

Chassis Slot Description

Each slot in the QL-IPPBX 1600/2120 chassis has a unique slot number starting with 1 and a configuration of 1 switch board (CSU-F/G),  with  different  orientations  for  different  chassis mod-els. Each installed module will occupy at least 1 slot (CCU- I  oc-cupies  two  slots),  some   modules   must  be  installed  in special use slots, but most slots are equivalent.

•     QL-IPPBX 1600 Slot Location

 •      QL-IPPBX 2120 Slot Location

Note :

QL-IPPBX  chassis  should  be  equipped  with  at  least  one main  control  board.  Among  them,  QL-IPPBX  1600  does not support dual master, QL-IPPBX 2120 can support dual mas-ter (only CCU-N series can support dual master, CCU- I does not support)

For  the  QL-IPPBX 1600, the SEU  plugs  into slot 2;  For the  QL-IPPBX   2120,  the  CCU-N-GML   hard  drive   board plugs into slot 3 or  10, and the CCU-N-BAYL and CCU-I-KABYLR hard drive boards plugs into slots 3-4, 10-11.

QL-IPPBX 1600/2120 does not support RAID.

QL-IPPBX 4131

QL-IPPBX 4131 adopts 4U standard chassis, 435.8mm wide, 330mm deep and 176.8mm high,   which   can    be   installed   in    19-inch   cabinet   conforming   to    IEC    (International Electrotechnical Commission) standard.

QL-IPPBX 4131 provides 2 slots for main control board, 9 slots for module board and 2 power supply modules to meet the service requirements of 1000~10000 users.

QL-IPPBX 4131 Chassis Slot Description

Each slot in the QL-IPPBX 4131 chassis has a unique slot number starting at 1 and a switch board  (CSU-F/G),  with  different  orientations  for   different  chassis   models.  Each  installed module will occupy at least 1 slot (CCU-I occupies two slots), some modules must be installed in special use slots, but most slots are equivalent.

•     QL-IPPBX 4131 Slot Location

 Note:

*  The  IPPBX  chassis  needs  to  be  equipped  with  at  least  one  main  control  board.  Among them, QL-IPPBX 4131 can support dual master CCU-I and dual power supplies.

*  For the case of without  RAID  module: CCU-I main control board which wants to expand the hard disk board, it can support up to 2 hard disk boards.  If the main control board is in slot 2, you can plug the hard disk board to 1 or 4; if the main control board is in slot 7, you can plug the hard disk board to slot 6 or 9.

*  For accessing the RAID module (RSU): If the CCU-I main control board is inserted into slot 2, the RAID card (RSU) should be inserted into slot 4, and the RAID hard disk should be inserted into slots 3 and 5; if the CCU-I main control board is inserted into slot 7, the RAID card (RSU) should be inserted into slot 9, and the RAID hard disk should be inserted into slots 8 and 10.

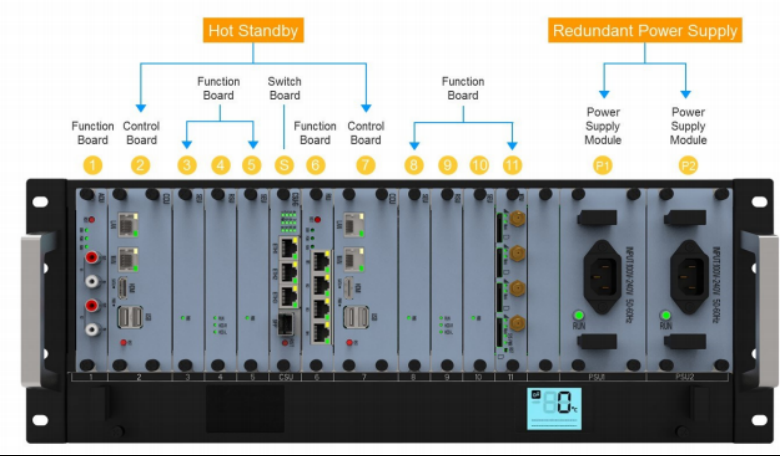

•     QL-IPPBX 4131 Slot Schematic

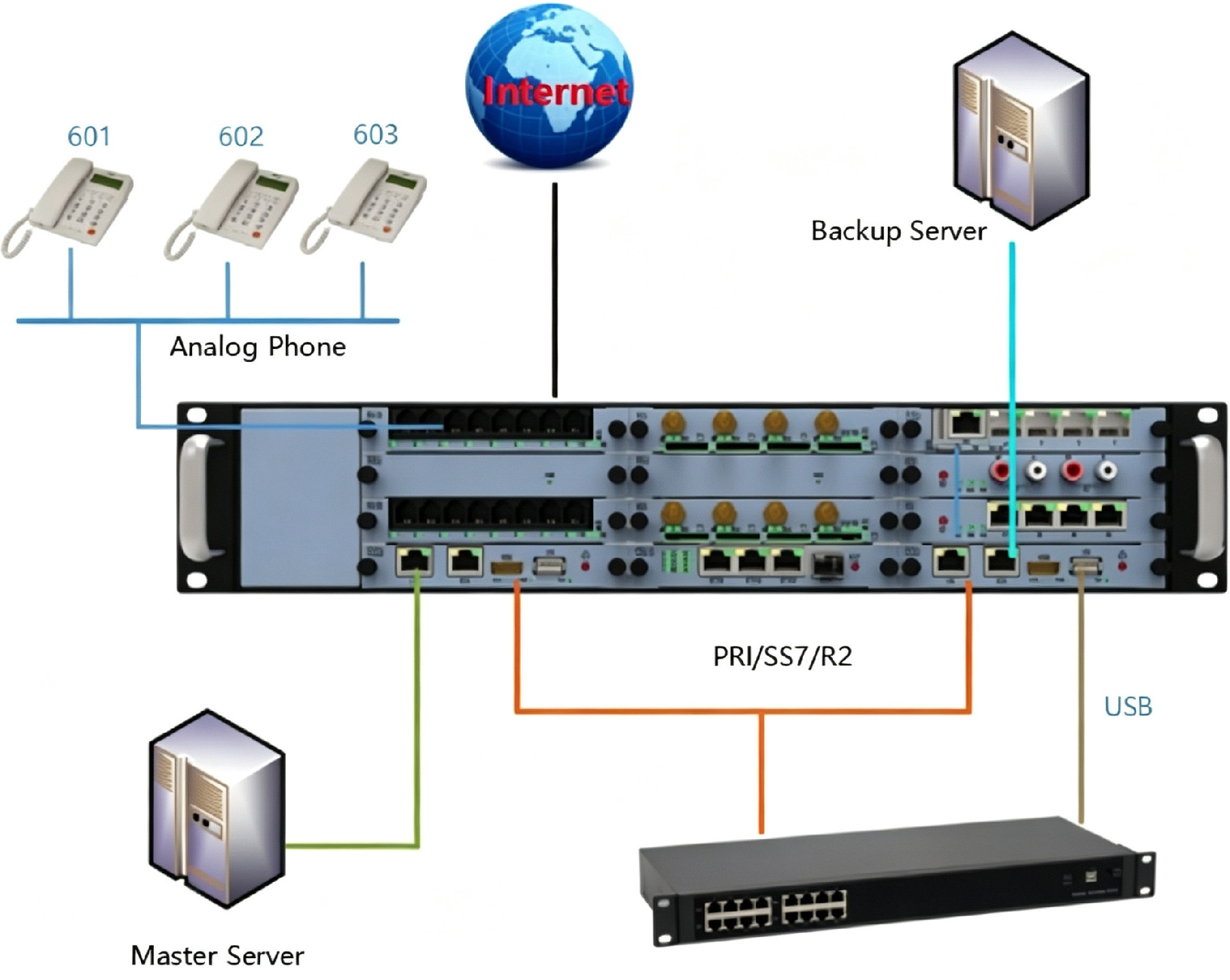

Application Topology 1

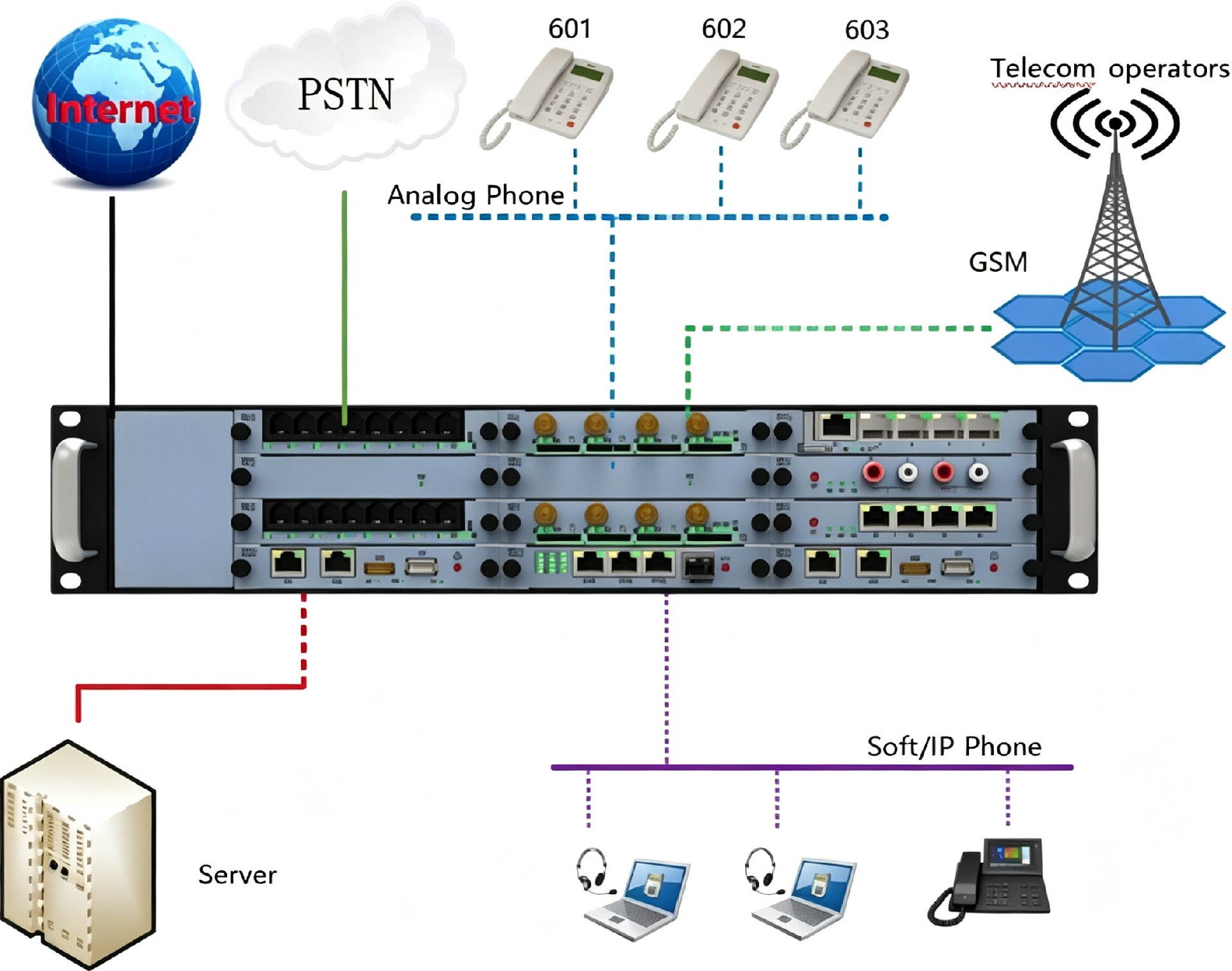

Application Topology 2

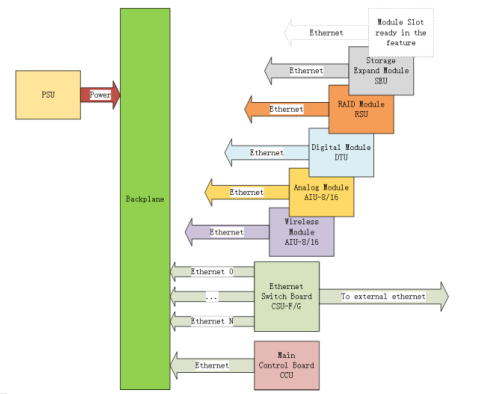

Architecture
