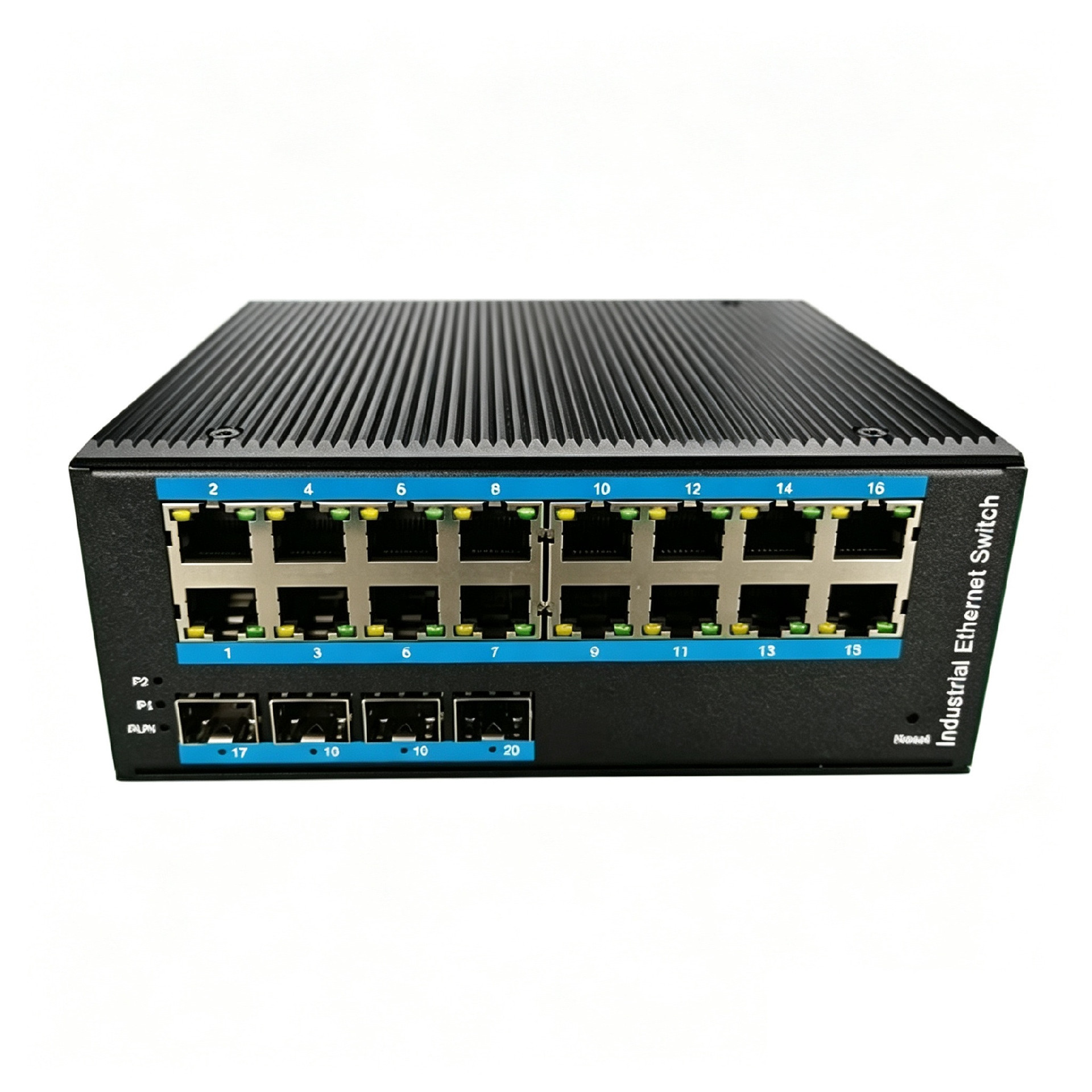

1.Overview
QL416GSP-M-SFP an hardened 20-port Industrial PoE Switch, provides non-blocking wire-speed performance in harsh industrial environment. It also provides 16-port 10/100/1000BASE-TX RJ45 PoE +4G SFP delivered in an IP40 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40℃ to 80℃.
The QL416GSP-M-SFP provides the flexibility to all kinds of 10/100/1000Mbps Ethernet Media on RJ-45 port and performs highly stable fiber performance.
The QL416GSP-M-SFP is packaged in a compact IP40 case that allows either DIN rail or panel mounting to have efficient usage of cabinet space. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 48V DC to 57V DC power supply inputs for high availability applications requiring dual or backup power inputs.2.Features
l interface
Ø 16-port 10/100Base-Tx RJ-45 with auto negotiation and auto-MDI/ MDI-X function, supplying 30W PoE, compatible with 802.3at/af
Ø 4G SFP
l Industrial conformance
Ø 48V to 57V DC, redundant power input
Ø -40℃ to 80℃ operating temperature
Ø IP40 aluminum housing
Ø Supports 6KV DC Ethernet ESD protection
Ø Supports 6KV DC EFT protection for power line
Ø Free Fall, Shock and Vibration Stability
Ø DIN-rail design
l L2 management
Ø Support STP/RSTP/MSTP
Ø Web management, CLI
Ø IGMP snooping, QOS,VLAN,SNMP
3.Specifications
Model No. | QL416GSP-M-SFP |
10/100/1000Base-TX Port | 16-Port RJ-45 auto-MDI / MDI-X |
PoE Specification | PoE Standard: IEEE802.3af/ IEEE802.3at |
PoE ports:1-16 port support PoE(max.) | |
Power Output: Max. 15.4 watts (IEEE 802.3af) Max. 30 watts (IEEE 802.3at) | |
PoE port Auto detect af/at devices | |
Output Voltage: DC48V | |
Power Pin Assignment:1/2+;3/6- | |
Power Type: End-span( Mid-span optional) | |
1000Base-FX Port | 4G SFP Slot |
Performance Specification | Bandwidth: 56Gbps MAC Address Table: 8K |
Installation | DIN rail |
Maximum Frame Size | 10240bytes packet size |
Flow Control | Back pressure for half duplex, IEEE 802.3x pause frame for full duplex |
Enclosure | IP40 Aluminum housing |
LED Indicator | Power: Red Fiber: Link 2(Green) Ethernet: Yellow |
Power Input | 48 to 57V DC redundant power |
Power Consumption | < 10watts |
Surge protection | ± 4KV |
Network Protocols | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; |
Network cables | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter) |
Industry Standard | FCC CFR47 Part 15,EN55022/CISPR22, Class A IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air) IEC61000-4-3 (RS): 10V/m (80~1000MHz) IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s) |
Certification | CE FCC Rohs compliance |
MTBF | >300,000hours |
Dimensions (W x D x H) | 166×137×68.5mm |
Weight | Product Weight: 1.18KG Packing Weight: 1.3KG |
Working Environment
| Working temperature: -40～80℃ ; Storage temperature: -40～80℃ Relative Humidity: 5%~95 %( no condensation) |
Warranty | 1-year replacement with new item; 3-years for main parts. |

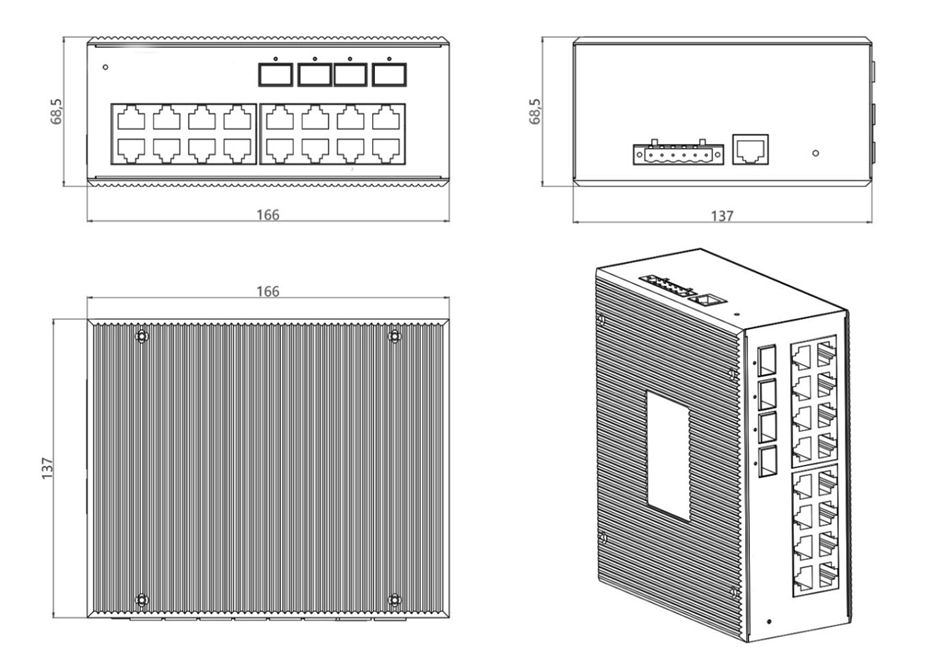

4.Dimensions
