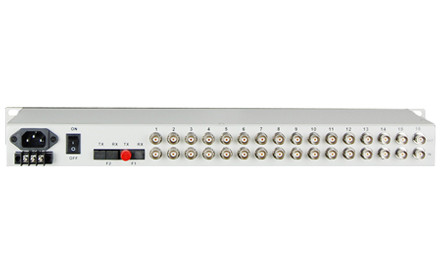

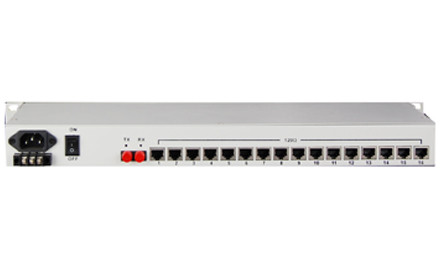

Product Description
This device is the point-to-point optical transmission device developed on the basis of VLSI. The device provides 1-16Channel E1 interface, 1-4Channel 10M/100M/1000M Ethernet interface (Line Rate 1000M) and 2 expansion interfaces. 4Channel Ethernet interface is switch interface, can support VLAN. 1 expansion interface can be used as the transmission channel of RS232/RS485/RS422 asynchronous data, voice signal, 2/4 line E&M audio signal, switch signal, Ethernet signal (Bandwidth 2M).1Channel digital business phone can be optional.It is very flexible. It has alarm function. The work is reliable, stable, and low power consumption, high integration, small size.
Functional Properties
l Based on self -copyright IC
l The bandwidth is up to 1.5G,can save line sources
l Ethernet interface rate is 10M/100M/1000M,half/full duplex auto- adaptable
l 4Channel Ethernet interface is switch interface,support VLAN,can set to 4 channel logical isolation
l E1 interface comply with G.703,adopts digital clock recovery and smooth phase-lock technology
l 1Channel PCM digital business phone (optional)
l Provide Console management interface
l When optical lose signal,it can detect the remote device is power off or fiber is disconnected,and indicates alarm by LED
l The local device can view the remote device working condition
l Provide 2 expansion interface,you can extend 1~2Channel asynchronous data,such as RS232/RS485/RS422/Manchester code;1~2Channel voice,1~2Channel E1,1~4Channel switch,or Provide command the remote interface Loop Back,ease line maintenance
l The transmission distance is up to 2-120Km without interruption
l AC 220V,DC-48V,DC24V can be optional
l DC-48V/DC24V power supply polarity detection function,Polarity-Free
Technical Parameters
Fiber
Multi-mode Fiber
50/125um, 62.5/125um,
Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km)Wave Length: 820nm
Transmitting power: -12dBm (Min) ~-9dBm (Max)
Receiver sensitivity: -28dBm (Min)
Link budget: 16dBm
Single-mode Fiber
8/125um, 9/125um
Maximum transmission distance: 40Km
Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)
Wave Length: 1310nm
Transmitting power: -9dBm (Min) ~-8dBm (Max)
Receiver sensitivity: -27dBm (Min)
Link budget: 18dBm
E1 Interface
Interface Standard:comply with protocol G.703;
Interface Rate:n*64Kbps±50ppm;
Interface Code:HDB3;
E1 Impedance:75Ω (unbalance), 120Ω (balance);
Jitter tolerance:In accord with protocol G.742 and G.823
Allowed Attenuation:0~6dBm
Gigabit Ethernet Interface (10/100/1000M)
Interface rate:10/100 Mbps, half/full duplex auto-negotiation
Interface Standard:Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability:4096
Connector:RJ45, support Auto-MDIX
Power
Power supply: AC180V ~ 260V；DC –48V；DC +24V
Power consumption: ≤10W
Dimension
Product size:19 inch 1U 485 X138 X45 mm(WXDXH)
Simple packaging: 522X198X82mm( WXDXH)
Piece weight: 3KG
Working environment
Working temperature: -10°C ~ 50°C
Working Humidity:5%~95 % (no condensation)
Storage temperature:-40°C ~ 80°C
Storage Humidity:5%~95 % (no condensation)

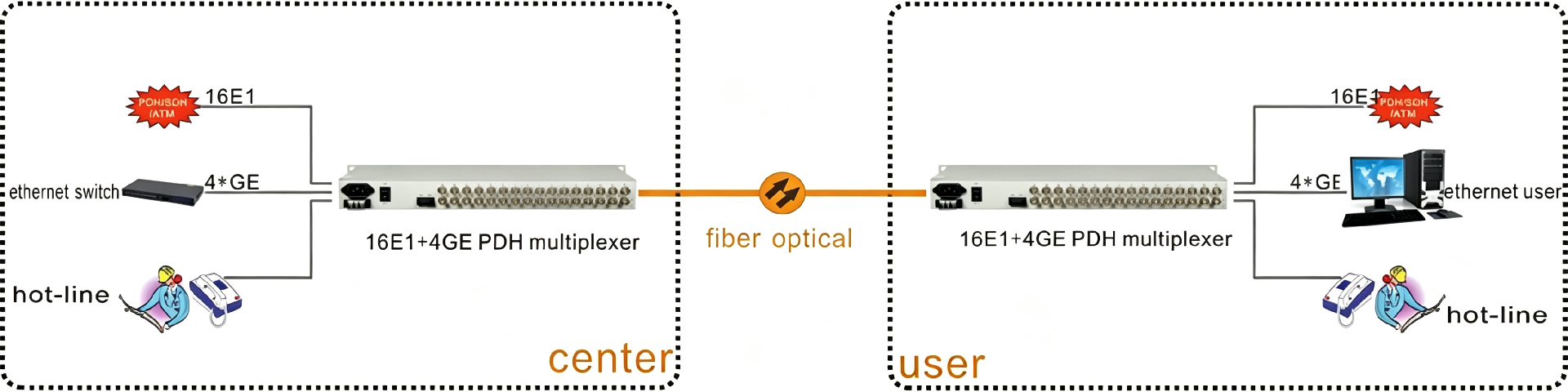

Application Scheme
