QL-MESH202-A2W20 Backpack Base Station High-Performance Self-Organizing Network Radio

Product Overview

The QL-MESH202-A2W20 backpack base station self-organizing network device is highly mobile and flexible, allowing it to be carried on the back to reduce additional weight or used as a temporary relay base station for fixed placement. Once powered on, it can automatically establish a network without additional configuration. Each backpack node does not need a central node to relay data; all nodes can simultaneously serve as data collection nodes, relay nodes, and data output nodes. The networking method dynamically changes with the environment to meet multi-scenario application needs. The device can achieve a transmission range of up to 20 km in an open line-of-sight environment and 150-200 km or more in elevated scenarios (air-to-ground line-of-sight). It can maintain high data transmission performance even in heavily obstructed environments. Designed to military-grade standards, it is effectively used in harsh environments.

This backpack base station self-organizing radio adopts an FPGA platform solution, COFDM technology, and mobile ad hoc network technology. It does not rely on any basic communication infrastructure and can establish a temporary, dynamic, and fast wireless IP MESH network. This network features self-organization, self-recovery, and high resilience, supporting multi-hop transmission of data, voice, video, and other multimedia services. It is suitable for various applications, including military forces, maritime police, public security and armed police, anti-terrorism units, border and coastal defense, firefighting and emergency response, rescue and disaster relief, oil and chemical industry, ports and water conservancy, forestry and transportation, mining tunnels, intelligent robots, unmanned vehicles and boats, field operations, temporary meetings, wireless video transmission, environmental monitoring, individual soldier networking, vehicle networking, and UAV swarm networking.

Ø - The backpack unit is suitable for individual soldiers to carry or to be used as a relay node.

Ø - Communication waveform: Default A waveform (64 nodes, 65 Mbps@10MHz), with options for A, B, C, D waveforms.

Ø - Mode number: Divided into 1, 2, 3, 4, 5, 6; backpack unit mode number is 2.

Ø - Operating frequency band: Optional 500-680 MHz with a center frequency of 600 or 1300-1500 MHz with a center frequency of 1400.

Ø - Expandable license: Adaptive frequency selection/hopping, interference defense, spatial division multiplexing (paid features, authorized as needed).

Product Features

Application Topology

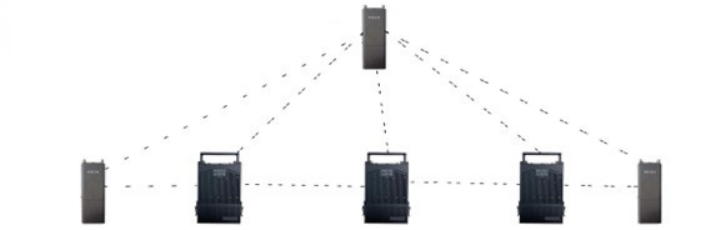

 It can be used in conjunction with a Mesh ad-hoc network manpack radio, and the communication distance is related to the antenna height and the electromagnetic environment.

Technical Specifications

Wireless Features

· Communication Frequency: Default L: 1300-1500MHz, UHF: 500-600/606-678MHz with optional configuration | Customizable within the 70~6000MHz range

· Channel Bandwidth: 2.5/5/10/20 MHz | 20 MHz version available

· Modulation Method: TDD-COFDM + MIMO (dual transmit, dual receive)

· Carrier Modulation: BPSK/QPSK/16QAM/64QAM/256QAM/1024QAM

· Transmission Rate: Peak 65 Mbps@10MHz | Peak 125 Mbps@20MHz

· Reception Sensitivity: -103dBm@2.5MHz

Transmission Distance

· Ground-to-ground LOS: Up to 20 km | Air-to-ground LOS: Over 150-200 km

· Transmission Power: Dual channel 20W, max 43dbm (2*10W)

Networking Features

· Networking Capability: Supports more than 64 nodes on a single frequency

· Network Hops: Maximum not less than 32 hops

· Network Joining Time: Network entry 1 second after system startup

· Network Topology: Centerless network, star network, chain network, mesh network, etc.

· Network Transparent Transmission: Supports network IP transparent transmission function

System Features

· Peripheral Interfaces: Ethernet *2, Serial Ports *2, Voice *1, Power *1, WiFi *1, Positioning | Support for multiple Ethernet, RS232, RS422, RS485 interfaces *1 customization

· Video Input: Supports IP video input

· Video Extension: Video encoder HDMI/SDI/CVBS* (*customizable extension on demand)

Control Features

· Configuration Management: Supports unified management configuration via WEB software | Configurable management software, API development interface

· Voice Communication: Full-duplex VOIP voice conference/PTT microphone talk

· Satellite Positioning: GPS/Beidou (BD)* | External positioning antenna as needed

· Additional Features: WiFi AP | External connection for 4G/5G router possible

Physical Characteristics

· Power Consumption: 30-120W, dual channel

· Operating Time: 6-8 hours (with integrated removable battery) | Low battery alarm customization supported

· Operating Temperature: -40°C to 65°C

· Protection Level: IP66

· Dimensions: 176X61X282mm

· Total Weight: 4170g

QL-MESH202-A2W20 Interface Definition

Product size
