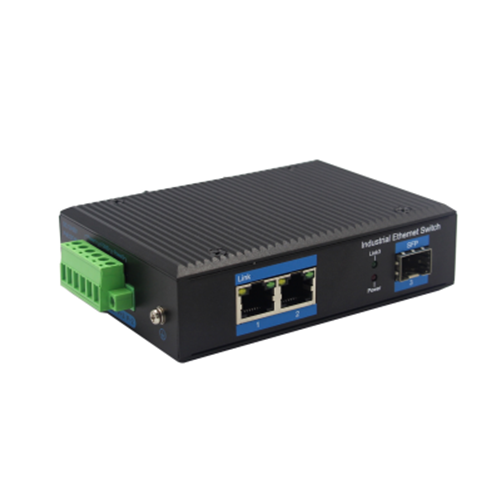

QLR12FP Series
1.OverviewQianLue 10/100Base-TX(PoE) to 100Base-FX Industrial Media Converter, extends communication distance with stable performance via fiber optic wire, in which the extended distance could be up to 2km with the QLR12FP-SC2, up to 20km with the QLR12FP-SC20 . The QLR12FP series is spe
1.Overview
QianLue 10/100Base-TX(PoE) to 100Base-FX Industrial Media Converter, extends communication distance with stable performance via fiber optic wire, in which the extended distance could be up to 2km with the QLR12FP-SC2, up to 20km with the QLR12FP-SC20 .
The QLR12FP series is specifically equipped with durable components and strong housing case to operate reliably in electrically harsh and climatically demanding environments. The industrial level media converter provides a high level of immunity to electromagnetic interference and heavy electrical surges which are usually found on plant floors or traffic control cabinets on sidewalk. Being able to operate under the temperature range from -40℃ to 80℃ allows the QLR12FP series to be placed in almost any difficult environment.
QianLue QLR12FP 10/100Base-TX to 100Base-FX Industrial Media Converter series efficiently converts data between 10/100Base-TX and 100Base-FX network. The QLR12FP series provides the flexibility to all kinds of 10/100Mbps Ethernet Media on RJ-45 port and performs highly stable fiber performance.
The QLR12FP series is packaged in a compact IP40 case that allows either DIN rail or panel mounting to have efficient usage of cabinet space. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 57V DC power supply inputs for high availability applications requiring dual or backup power inputs.
2.Features
l interface
Ø 2-port 10/100Base-Tx RJ-45 with auto negotiation and auto-MDI/ MDI-X function, supplying 30W PoE, compatible with 802.3AT/AF
Ø 1-port 100Base-Fx interface SC/FC/ST/SFP
Ø Multi-Mode up to 2km
Ø Single-Mode up to 20km/40km/60km/80km
l Industrial conformance
Ø 48V to 57V DC, redundant power input
Ø -40℃ to 80℃ operating temperature
Ø IP40 aluminum housing
Ø Supports 6KV DC Ethernet ESD protection
Ø Supports 6KV DC EFT protection for power line
Ø Free Fall, Shock and Vibration Stability
Ø DIN-rail design
3.Specifications
Model No. | QLR12FP-SC2 / QLR12FP-SC20 / QLR12FP-SFP |
10/100Base-TX Port | 2 port RJ-45 auto-MDI / MDI-X |
PoE Specification | PoE Standard: IEEE802.3af/ IEEE802.3at |
PoE ports:2-port support PoE | |
Power Output: Max. 15.4 watts (IEEE 802.3af) Max. 30 watts (IEEE 802.3at) | |
PoE port Auto detect AF/AT devices | |
Output Voltage: DC48V | |
Power Pin Assignment:1/2+;3/6- | |
Power Type: End-span( Mid-span optional) | |
1000Base-FX Port | QLR12FP-SC2: 1 SC interface QLR12FP-SC20: 1 SC Interface QLR12FP-SFP: 1 SFP Slot |
Fiber Port Type | QLR12FP-SC2: SC / multi-mode ,up to distance 2km ; QLR12FP-SC20: SC / single-mode ,up to distance 20km ; QLR12FP-SFP: Vary on module |
Optical Frequency | QLR12FP-SC2: 1310nm QLR12FP-SC20: 1310nm QLR12FP-SFP: Vary on module |
Performance Specification | Bandwidth: 1.6Gbps Packet Buffer Memory:1Mbit Packet Forwarding Rate:1.2Mpps MAC Address Table: 2K |
Installation | DIN rail |
Maximum Frame Size | 9000bytes packet size |
Flow Control | Back pressure for half duplex, IEEE 802.3x pause frame for full duplex |
Enclosure | IP40 aluminum housing |
LED Indicator | Power: Red Fiber: Link 2(Green) Ethernet: Yellow |
Power Input | 48 to 57V DC redundant power |
Power Consumption | < 3 watts |
Surge protection | ±4KV |
Network Protocols | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX; |
Network cables | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter) |
Industry Standard
| FCC CFR47 Part 15,EN55022/CISPR22, Class A IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air) IEC61000-4-3 (RS): 10V/m (80~1000MHz) IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s) |
Certification | CE FCC Rohs compliance |
MTBF | >300,000hours |
Dimensions (W x D x H) | 118 x 86 x 33.5 mm |
Weight |
Product Weight: 0.36KG Packing Weight: 0.46KG |
Working Environment
| Working temperature: -40～80℃ ; Storage temperature: -40～80℃ Relative Humidity: 5%~95 %( no condensation) |
Warranty | 1-year replacement with new item; 3-years for main parts. |
Model No. | QLR12FP-SC2 / QLR12FP-SC20 / QLR12FP-SFP |
10/100Base-TX Port | 2 port RJ-45 auto-MDI / MDI-X |
PoE Specification | PoE Standard: IEEE802.3af/ IEEE802.3at |
PoE ports:2-port support PoE | |
Power Output: Max. 15.4 watts (IEEE 802.3af) Max. 30 watts (IEEE 802.3at) | |
PoE port Auto detect AF/AT devices | |
Output Voltage: DC48V | |
Power Pin Assignment:1/2+;3/6- | |
Power Type: End-span( Mid-span optional) | |
1000Base-FX Port | QLR12FP-SC2: 1 SC interface QLR12FP-SC20: 1 SC Interface QLR12FP-SFP: 1 SFP Slot |
Fiber Port Type | QLR12FP-SC2: SC / multi-mode ,up to distance 2km ; QLR12FP-SC20: SC / single-mode ,up to distance 20km ; QLR12FP-SFP: Vary on module |
Optical Frequency
| QLR12FP-SC2: 1310nm QLR12FP-SC20: 1310nm QLR12FP-SFP: Vary on module |
Performance Specification
| Bandwidth: 1.6Gbps Packet Buffer Memory:1Mbit Packet Forwarding Rate:1.2Mpps MAC Address Table: 2K |
Installation | DIN rail |
Maximum Frame Size | 9000bytes packet size |
Flow Control | Back pressure for half duplex, IEEE 802.3x pause frame for full duplex |
Enclosure | IP40 aluminum housing |
LED Indicator
| Power: Red Fiber: Link 2(Green) Ethernet: Yellow |
Power Input | 48 to 57V DC redundant power |
Power Consumption | < 3 watts |
Surge protection | ±4KV |
Network Protocols
| IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX; |
Network cables | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter) |
Industry Standard
| FCC CFR47 Part 15,EN55022/CISPR22, Class A IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air) IEC61000-4-3 (RS): 10V/m (80~1000MHz) IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s) |
Certification | CE FCC Rohs compliance |
MTBF | >300,000hours |
Dimensions (W x D x H) | 118 x 86 x 33.5 mm |
Weight | Product Weight: 0.36KG Packing Weight: 0.46KG |
Working Environment
| Working temperature: -40～80℃ ; Storage temperature: -40～80℃ Relative Humidity: 5%~95 %( no condensation) |
Warranty | 1-year replacement with new item; 3-years for main parts. |

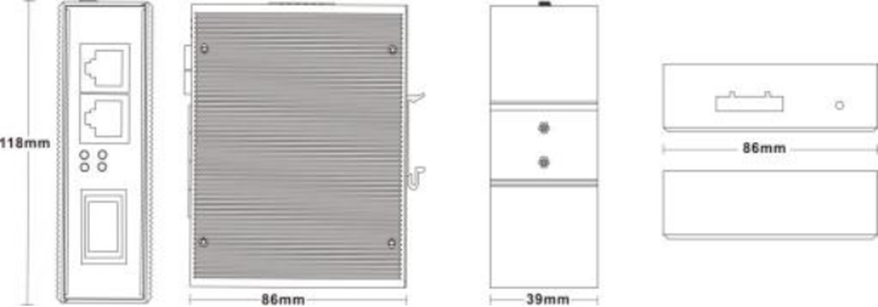

4.Dimensions
