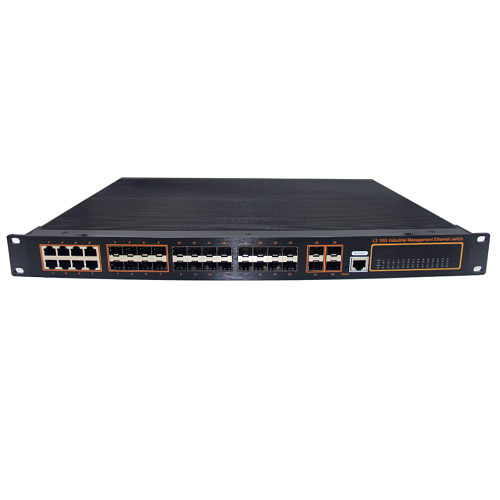

QL1612GS-M-SFP
1.OverviewQL1612GS-M-SFP an hardened 32-port Industrial Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment. It also provides 16-port 10/100/1000Mbps SFP +8-Port RJ45+4G combo delivered in an IP50 rugged, strong case with redundant power system. Its slim cas
1.Overview
QL1612GS-M-SFP an hardened 32-port Industrial Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment. It also provides 16-port 10/100/1000Mbps SFP +8-Port RJ45+4G combo delivered in an IP50 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40℃ to 80℃.
The QL1612GS-M-SFP provides the flexibility to all kinds of 10/100/1000Mbps Ethernet Media on RJ-45 port and performs highly stable fiber performance.
The QL1612GS-M-SFP is packaged in a compact IP40 case that allows bracket mounting to cabinet . It supplies dual power supply: DC36~72V and AC110-240V.
2.Features
l interface
Ø 16-port 10/100/1000Mbps SFP
Ø 8-port 10/100/1000Mbps RJ45
Ø 4G combo
l Industrial conformance
Ø Dual power supply: DC36-72 and AC110-240V
Ø -40℃ to 80℃ operating temperature
Ø Supports 6KV DC Ethernet ESD protection
Ø Supports 6KV DC EFT protection for power line
Ø Free Fall, Shock and Vibration Stability
Ø Bracket mounted
l L2 management
Ø Support STP/RSTP/MSTP
Ø Web management, CLI
Ø IGMP snooping, QOS,VLAN,SNMP
3.Specifications
Model No. | QL1612GS-M-SFP |
1000Base-FX Port | 16 port SFP |
1000Base-TX Port | 8 port RJ-45 auto-MDI / MDI-X 4G combo (either 4G SFP or 4G RJ45) |
Performance Specification
| Bandwidth (switch capacity): 256G Packet Buffer Memory: 16Mbit Packet Forwarding Rate: 131Mpps MAC Address Table: 16K |
Installation | Bracket mounting |
Maximum Frame Size | 10240bytes packet size |
Flow Control | Back pressure for half duplex, IEEE 802.3x pause frame for full duplex |
Enclosure | IP50 Aluminum housing |
LED Indicator | Power: Red Fiber: Link 2(Green) Ethernet: Yellow |
Dual Power Input | 36 to 72V DC; AC110-240V |
Power Consumption | < 45W |
Surge protection | ± 4KV |
Network Protocols | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; |
Network cables | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤10meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter) |
Industry Standard
| FCC CFR47 Part 15,EN55022/CISPR22, Class A IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air) IEC61000-4-3 (RS): 10V/m (80~1000MHz) IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s) |
Certification | CE FCC Rohs |
MTBF | >300,000hours |
Dimensions (W x D x H) | 442×325×44 mm |
Weight | Product Weight: 3.26KG Packing Weight: 4KG |
Working Environment
| Working temperature: -40～80℃ ; Storage temperature: -40～80℃ Relative Humidity: 5%~95 %( no condensation) |
Warranty | 1-year replacement with new item; 3-years for main parts. |
4.Dimensions
