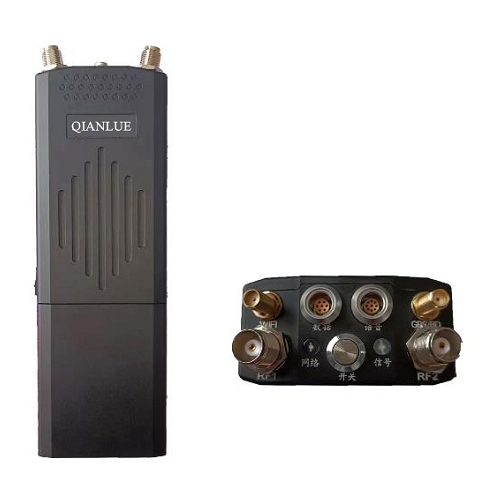

QL-MESH201-A1W4 Man-Portable High-Performance Ad-hoc Network Radio

Product Overview

The QL-MESH201-A1W4 man-portable ad-hoc networking device is highly mobile and flexible. It can be worn around the waist to reduce additional weight or placed as a temporary relay node in a fixed position. Once powered on, it automatically establishes network links without requiring any additional configuration. Each individual node does not need to relay data through a central node; all nodes can simultaneously function as data collection nodes, relay nodes, and data output nodes. The network dynamically adjusts to environmental changes, meeting the demands of various application scenarios. In unobstructed environments, the device can transmit data over distances of up to 10 km (ground-to-ground line of sight) or 60-100 km (air-to-ground line of sight). Even in heavily obstructed environments, it maintains high data transmission and communication performance. Designed to military-grade standards, it is highly effective in various harsh environmental conditions.

This man-portable ad-hoc network radio adopts an FPGA platform solution, utilizing COFDM (Coded Orthogonal Frequency Division Multiplexing) technology and mobile Ad hoc network technology. It does not rely on any basic communication infrastructure and can temporarily, dynamically, and quickly establish a wireless IP MESH network. This network features self-organization, self-recovery, and high survivability, supporting multi-hop transmission of multimedia services such as data, voice, and video.

It can be applied in various scenarios, including military operations, maritime law enforcement, public security, counterterrorism special operations, border and coastal defense, firefighting and emergency rescue, disaster relief, petrochemical industries, ports and water conservancy, forestry and transportation, mines and tunnels, intelligent robots, unmanned vehicles, unmanned boats, field operations, temporary conferences, wireless image transmission, environmental monitoring, individual soldier networking, vehicle networking, and drone swarm networking.

This radio can directly supply 12V DC power to peripherals such as cameras through its own battery.

Ø  The man-portable handheld radio is suitable for individual soldiers to carry or use as a portable relay node.

Ø  Communication waveforms: The default is Waveform A (64 nodes, 65Mbps @ 10MHz), with optional A, B, C, and D waveforms available.

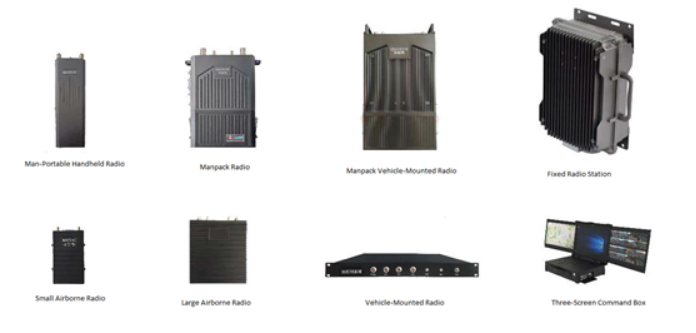

Ø  Form factor numbering: The form factors are numbered 1, 2, 3, 4, 5, and 6, with the man-portable handheld radio designated as number 1.

Ø  Operating frequency bands: Optional 500-680 MHz with a center frequency of 600 MHz, or 1300-1500 MHz with a center frequency of 1400 MHz.

Ø  Expandable licenses: Adaptive frequency selection/hopping, interference defense, and spatial time division multiplexing (optional paid features, licensed as needed).

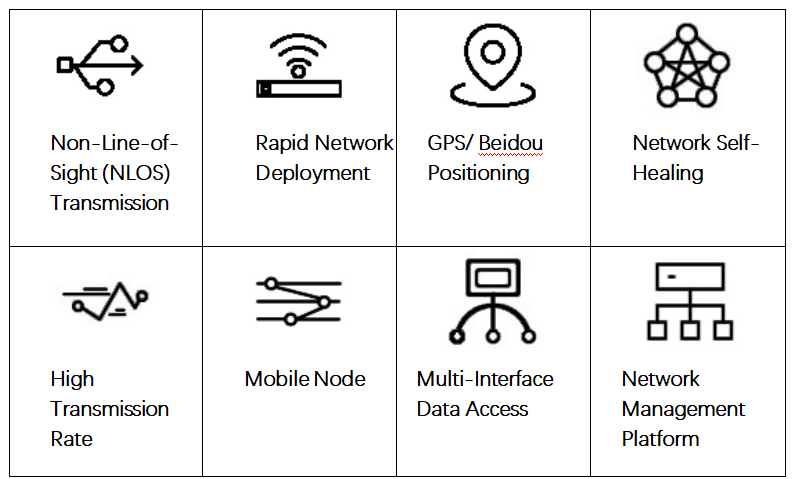

Product Features

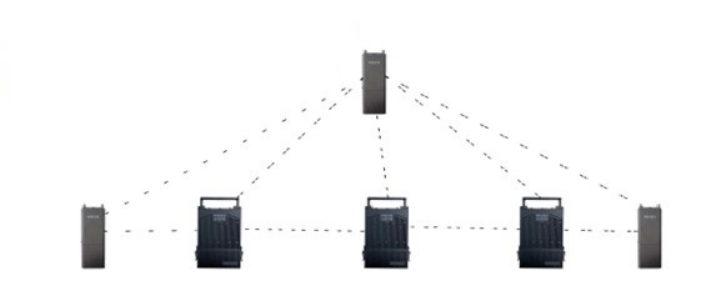

Application Topology

It can be used in conjunction with a Mesh ad-hoc network manpack radio, and the communication distance is related to the antenna height and the electromagnetic environment.

Technical indicators/specifications

Wireless Features

• Communication Frequency: Default L-band:      1400-1500MHz, UHF: 500-600/606-678MHz with optional configurations;      customizable within the range of 70~6000MHz.

• Channel Bandwidth: 2.5/5/10/20 MHz; 20MHz      version available as an option.

• Modulation Method: TDD-COFDM + MIMO (Dual      Transmit, Dual Receive).

• Carrier Modulation: BPSK, QPSK, 16QAM, 64QAM,      256QAM, 1024QAM.

• Transmission Rate: Peak 65Mbps at 10MHz, with      a peak of 125Mbps at 20MHz available.

• Receiver Sensitivity: -103dBm at 2.5MHz.

• Transmission Distance: Up to 10 km      (ground-to-ground line of sight), and more than 60-100 km (air-to-ground      line of sight).

• Transmit Power: Dual channel, maximum      36dBm (2x2W).

Networking Function

• Networking Capability: Single frequency supports      more than 64 nodes.

• Number of Network Hops: At least 32 hops.

• Network Joining Time: Joins the network within 1      second after system startup.

• Network Topology: Supports decentralized      networks, star, chain, and mesh networks.

• Network Transparent      Transmission: Supports IP transparent transmission.

System Functions

• Peripheral Interface: Includes 1 Ethernet port,      1 voice port, 1 power port, 1 WiFi port, 1 positioning port; supports      multiple network ports, RS232, RS422, RS485, and custom interfaces.

• Video Input: Supports IP video input.

• Video Expansion: Video encoder      HDMI/SDI/CVBS (customizable as needed).

• Control Functions: Supports unified      management and configuration via web software; custom configuration      management software and API development interface available.

• Voice Communication: Full-duplex VOIP voice      conference/PTT hand mic intercom.

• Satellite Positioning: GPS/Beidou; external      positioning antenna available as needed.

• Additional Functions: WiFi AP, can connect to an      external 4G/5G router.

Physical Characteristics

• Power Consumption: 15~25W, dual channel.

• Operating Time: 6~8 hours (with integrated      removable battery); supports low battery alarm customization.

• Operating Temperature: -40℃ to 65℃.

• Protection Rating: IP66.

• Dimensions: 70 x 35 x 208mm.

• Overall Weight: Approximately 880g.

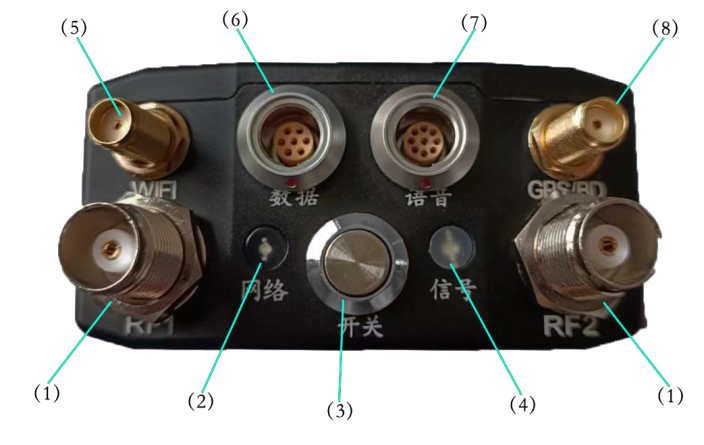

QL-MESH201-A1W4 Interface Definition

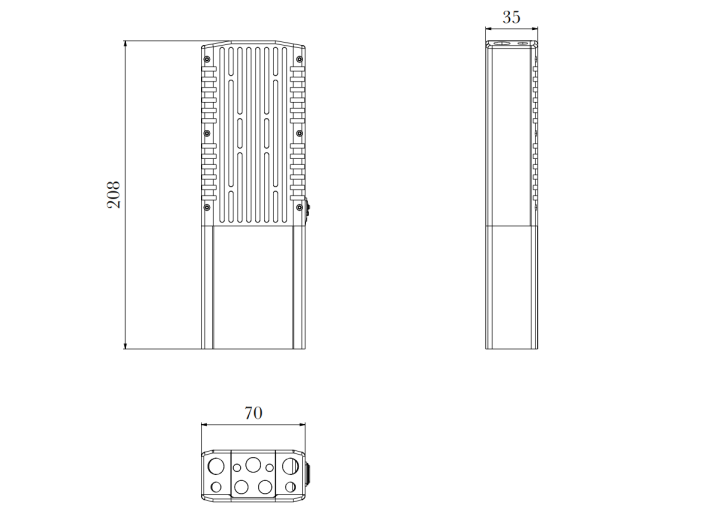

Product size

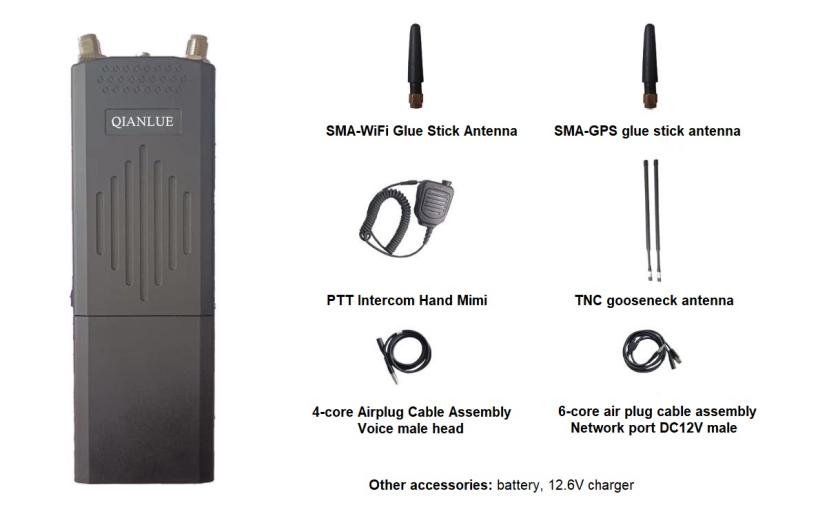

Product accessories

Packing list
