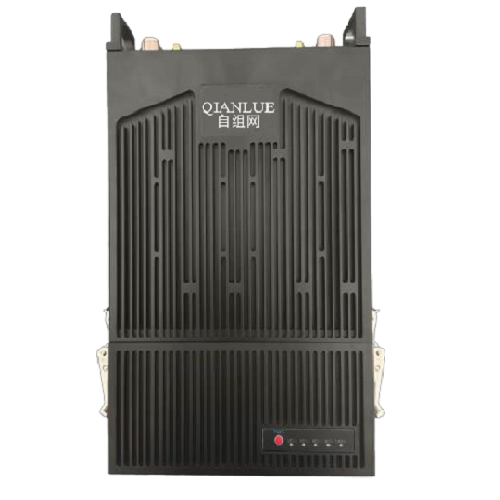

QL-MESH202-A2W10 Manpack Base Station High-Performance Ad-hoc Network Radio

Product Overview

The QL-MESH202-A2W10 manpack base station ad-hoc network device is mobile and flexible. It can be carried on the back to reduce additional weight or fixed as a temporary relay base station. Upon powering on, it automatically establishes network links without needing additional configuration. Each manpack node can function simultaneously as a data collection node, relay node, and data output node, without needing a central node to relay data. The network structure dynamically adjusts to environmental changes, meeting the demands of various scenarios.

In unobstructed environments, the device can achieve a transmission range of up to 15 km (ground-to-ground line of sight) or more than 100-150 km (air-to-ground line of sight). Even in heavily obstructed environments, it maintains high data transmission. With a military-grade design, it is effectively applied in various harsh environments.

This manpack base station ad-hoc network radio uses an FPGA platform, COFDM technology, and mobile Ad hoc network technology, without relying on any basic communication infrastructure. It can rapidly and dynamically establish a temporary wireless IP MESH network, with features of self-organization, self-recovery, and high survivability, supporting multi-hop transmission for multimedia services like data, voice, and video.

Applications include military operations, maritime law enforcement, public security, counter-terrorism special forces, border and coastal defense, firefighting and emergency rescue, disaster relief, petrochemical industries, ports and water conservancy, forestry and transportation, mines and tunnels, intelligent robots, unmanned vehicles, unmanned boats, field operations, temporary conferences, wireless image transmission, environmental monitoring, soldier networking, vehicle networking, and drone swarm networking.

Ø The manpack radio is suitable for individual soldier carrying or as a relay node.

Ø Communication waveform: Default is Waveform A (64 nodes, 65Mbps @10MHz), with optional A, B, C, and D waveforms.

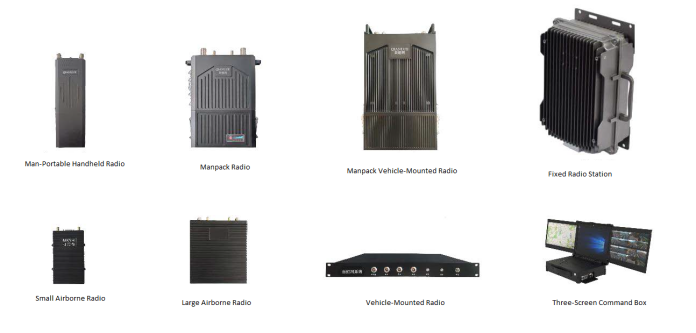

Ø Form factor number: The form factors are numbered 1, 2, 3, 4, 5, 6, with the manpack radio being number 2.

Ø Operating frequency band: Optional 500-680MHz, center frequency at 600MHz or 1300-1500MHz, center frequency at 1400MHz.

Ø Expandable license: Adaptive frequency selection/frequency hopping/interference defense/spatial time division multiplexing (paid features, licensed as needed).

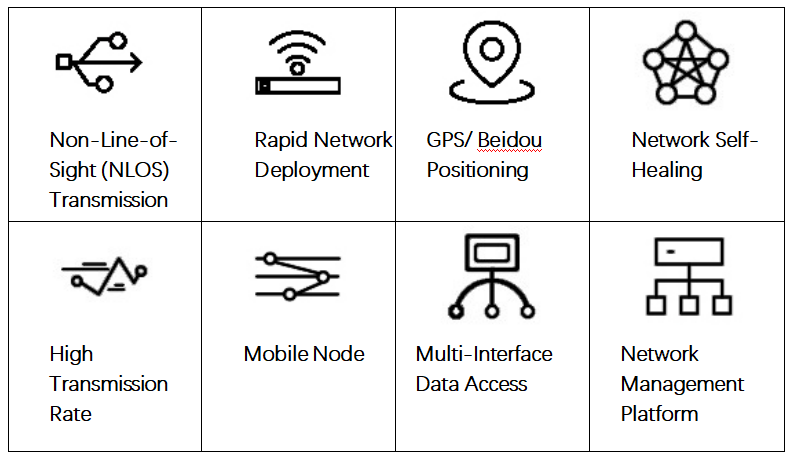

Features

Application Topology

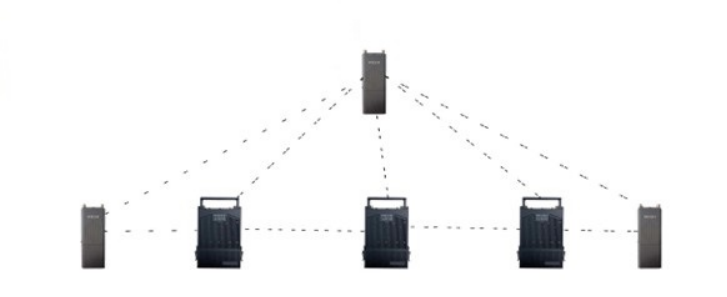

It can be used in conjunction with a Mesh ad-hoc network manpack radio, and the communication distance is related to the antenna height and the electromagnetic environment.

Technical Specifications

Wireless Features

· Communication Frequency: Default L-band: 1300-1500MHz, UHF: 500-600/606-678MHz optional. Customizable within the 70~6000MHz range.

· Channel Bandwidth: 2.5/5/10/20 MHz. 20MHz version is optional.

· Technical System: TDD-COFDM + MIMO (Dual Transmit, Dual Receive).

· Carrier Modulation: BPSK/QPSK/16QAM/64QAM/256QAM/1024QAM.

· Transmission Rate: Peak 65Mbps@10MHz, with an option for Peak 125Mbps@20MHz.

· Receiver Sensitivity: -103dBm at 2.5MHz.

Transmission Distance

· Effective Range: Up to 15 km (ground-to-ground line of sight), and more than 100-150 km (air-to-ground line of sight).

· Transmission Power: Dual-channel 10W, maximum 40dBm (2x5W).

Networking Function

· Networking Capability: Single frequency supports more than 64 nodes.

· Number of Network Hops: The maximum number of hops is not less than 32.

· Network Joining Time: Joins the network 1 second after system startup.

· Network Topology: Decentralized network, star network, chain network, mesh network, etc.

· Network Transparent Transmission: Supports network IP transparent transmission function.

System Functions

· Peripheral Interface: Includes 2 Ethernet ports, 2 serial ports, 1 voice port, 1 power port, 1 Wi-Fi port, and 1 positioning port. Supports multiple network ports, RS232, RS422, RS485, and other interfaces are customizable.

· Video Input: Supports IP video input.

· Video Expansion: Video encoder HDMI/SDI/CVBS, customizable expansion as needed.

Control Functions

· Unified Management and Configuration: Supports unified management and configuration via web software. Customizable configuration management software and API development interface available.

· Voice Communication: Full-duplex VOIP voice conference/PTT hand mic intercom.

· Satellite Positioning: GPS/Beidou with optional external positioning antenna.

· Additional Functions: WiFi AP, supports external 4G/5G router.

Physical Characteristics

· Power Consumption: 25~80W, dual-channel.

· Operating Time: 6-8 hours with an integrated removable battery. Supports customizable low-battery alarm.

· Operating Temperature: -40℃ to 65℃.

· Protection Rating: IP66.

· Dimensions: 17661282mm.

· Overall Weight: 3980g.

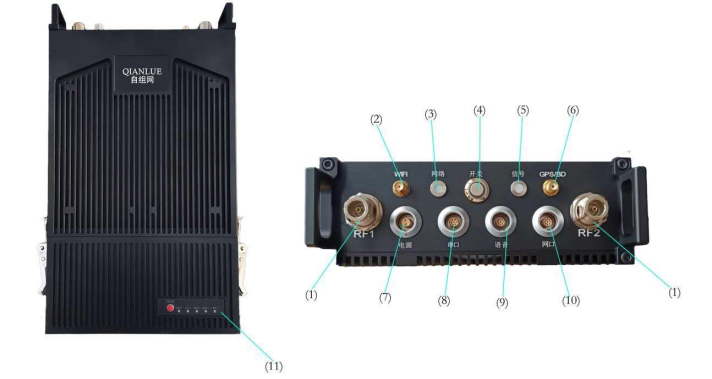

QL-MESH202-A2W10 Interface Definition

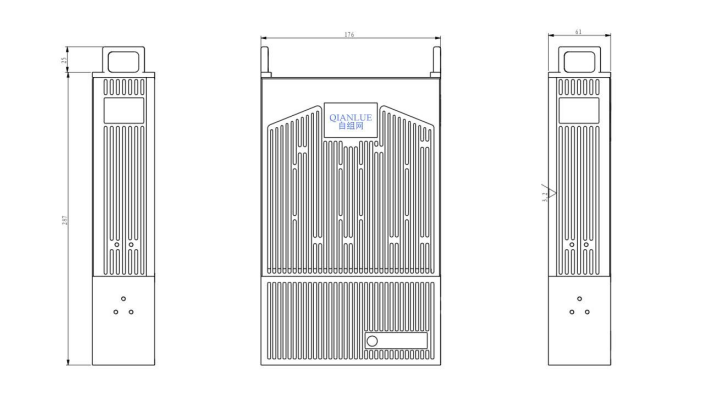

Product Dimensions

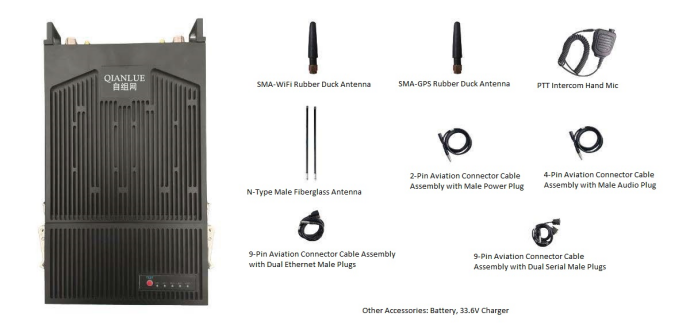

Product accessories
